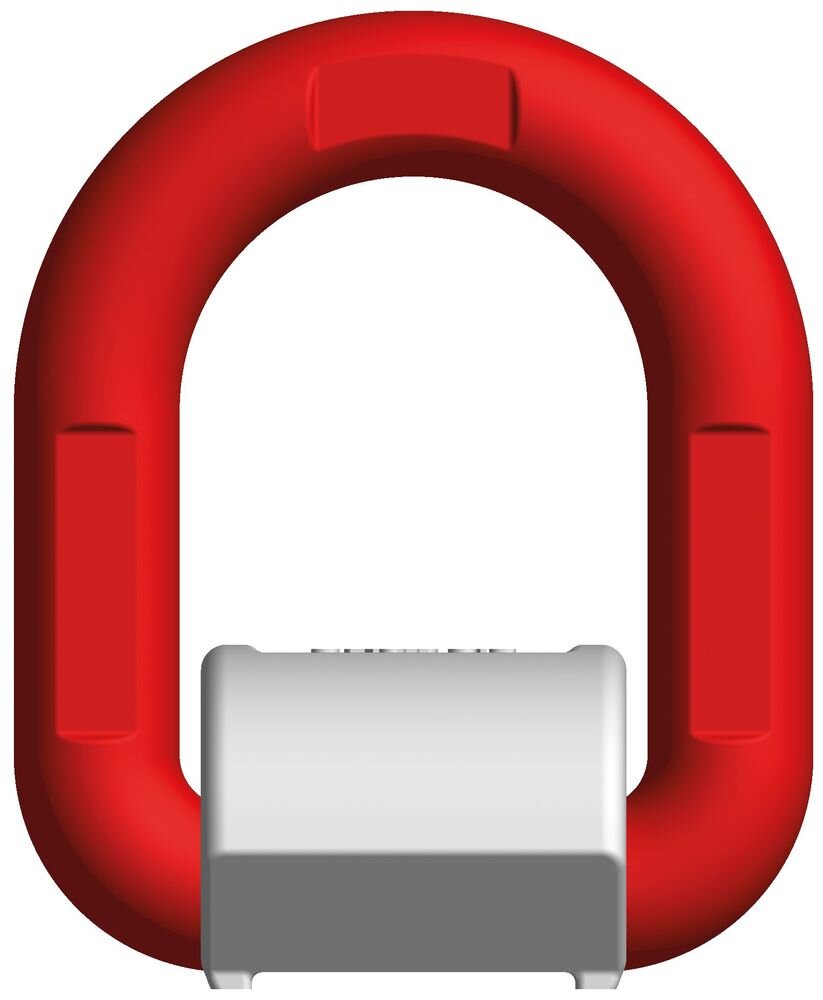

Pewag Weldable High Tensile Eyebolts | PLE/N
Pewag Weldable High Tensile Eyebolts | PLE/N
Regular price
€13,36 EUR
Regular price
Sale price
€13,36 EUR
Unit price
/
per
Couldn't load pickup availability
High-tensile eyebolts pewag profilift eta, for welding onto machine parts or vehicle bodies. Ideal for hanging of lifting and lashing parts. Due to the integrated spring, the ring will be kept in each requested position.
The instructions according to DIN EN ISO 14341 are valid for the welding. The welding may only be carried out by a welding operator with a valid qualification according to EN 287-1.
The lifting points will be packed individually and together with a user manual and welding instructions.
Permissible usage
Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull – see picture 1 and 2.
Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull – see picture 1 and 2.
Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:
• The direction of pull is obstructed
• Direction of pull is not in the foreseen area
• Loading ring rests against edges and load
For more information or to place an order, please contact us on:
Tel: 0871447086 or email: alan@amsitesolutions.com
