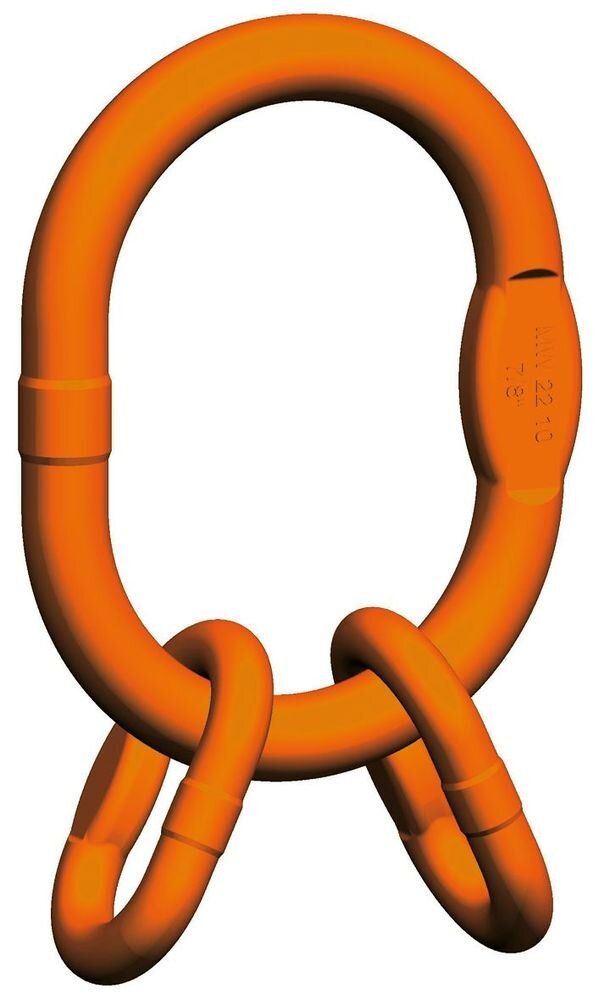

Enlarged Master Link assembly Pewag VMW

Pewag Grade 10 Chain Components

This master link assembly for III- and IV-leg chain slings in assembled or welded systems complies with EN 1677-4 and the mechanical values for G10. A flattened section on the transition links opens up additional, universal connection possibilities (measurements can be obtained from the product “BW”). Thanks to the use of MW links, this master link assembly has larger inside dimensions than the VW IV-leg master link assembly and can thus also be used for the next size up crane hooks. See table below for the maximum crane hook size as specified by DIN 15401 and DIN 15402. This powerful package comes with CE marking and a full operating manual.

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.#

• Operating temperature range from -40°C to 380°C (up to 200°C without reduction in WLL)
• Fatigue tested to 1.5 x WLL for 20,000 cycles
• 100% Magnaflux crack detected
• Powder coated
